KL744 CNC Router Kit

$2,875.00

No warranty is expressed or given for any software purchased from BobsCNC. No refunds will be given for any software purchased. If a BobsCNC Router kit is purchased with software and the kit is returned for refund in accordance with the return policy, the retail price of the software will be deducted from the total original purchase price. Any software purchased is the property of the customer.

Description

Free Shipping (in the lower 48 United States)

Orders are shipped within 4 business days of the purchase date.

    Features

    The KL7 Series CNC Routers feature an expanded cutting area to let you supersize your projects, nest 2D production jobs, make cabinet accessories, signs, machine rough sawn slabs, 4 x 8 plywood panels and more.
    • 12mm 9 ply Baltic Birch
    • 48"x48" Cutting Area
    • SG25U supported rail system

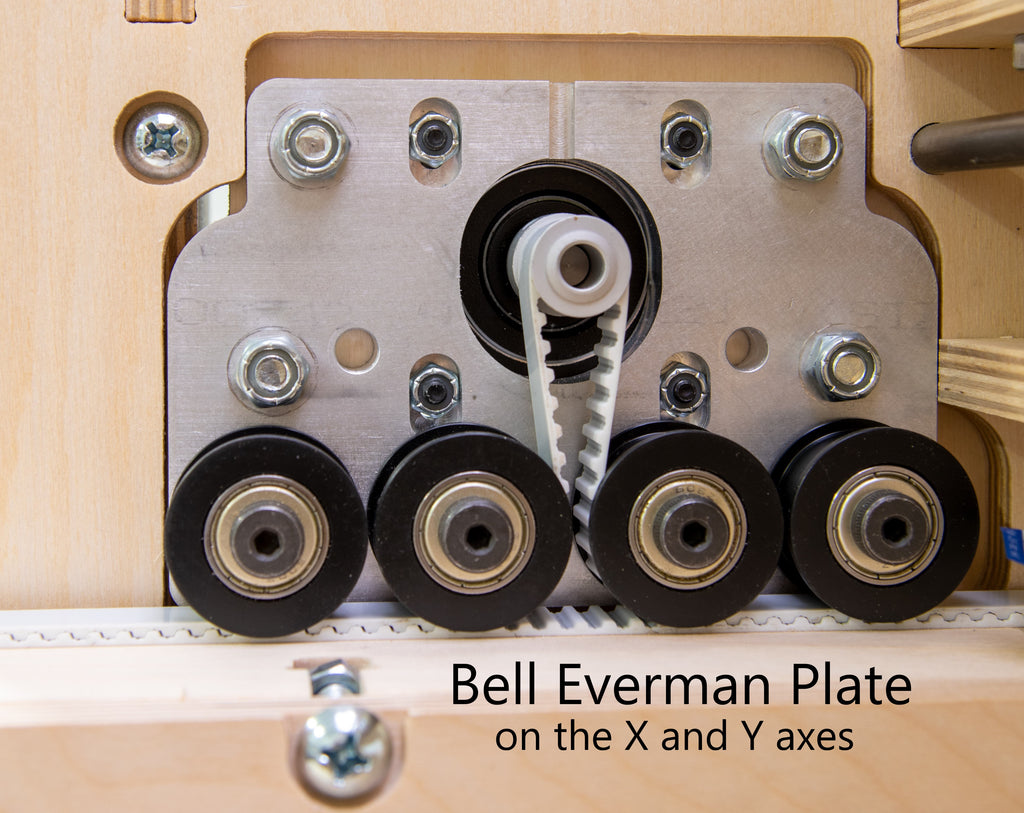

    • Steel Reinforced T5x15 Bell-Everman Belt System

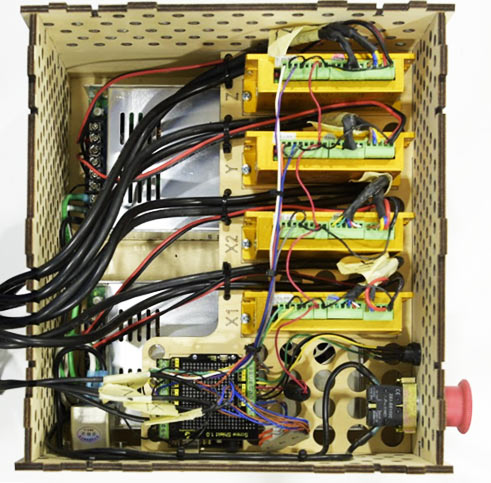

    • 425 oz.in NEMA 23 Servo Closed Loop Quadrature Encoder
    • Hall Effect Home Switches
    • Drag Chain Wire Management
    • Makita RT0701C Variable Speed Router included

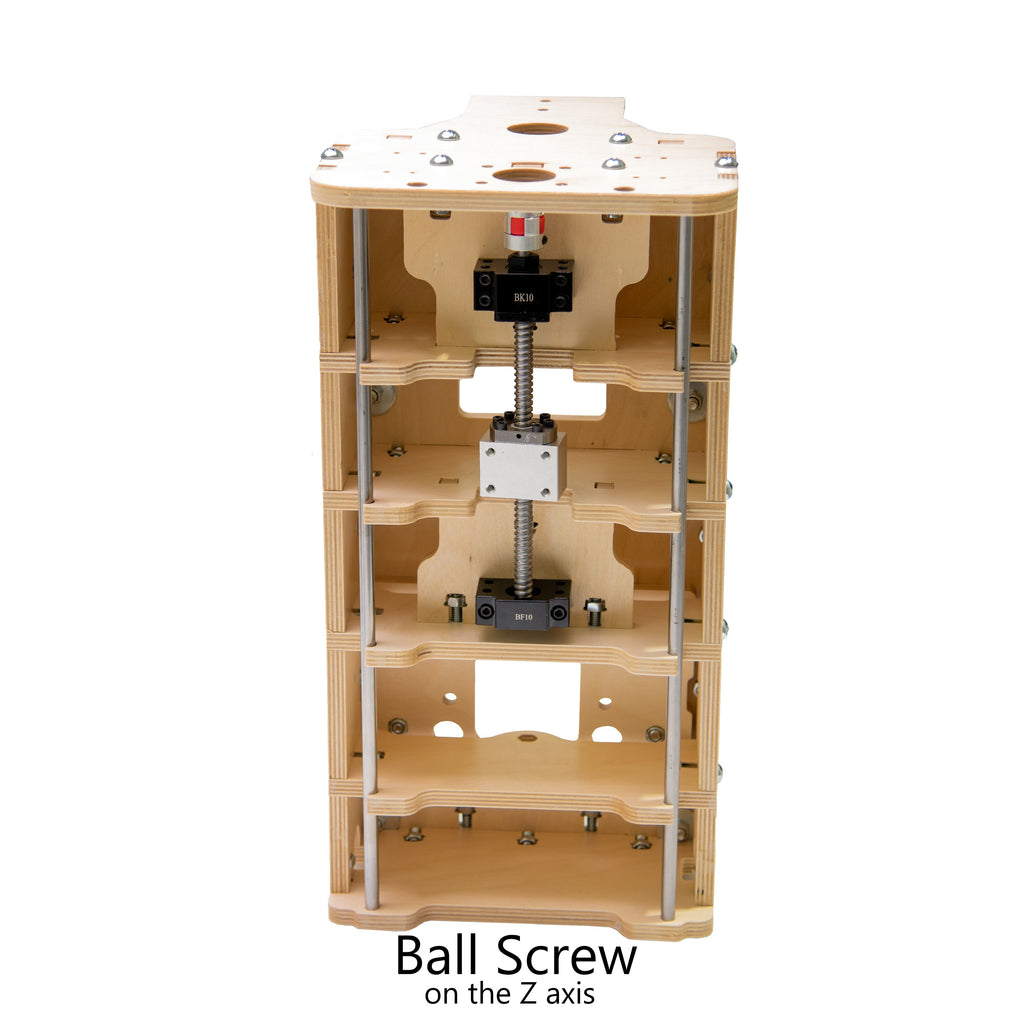

    • SFU 1204 Ball Screw on Z-Axis
    • Designed to use GRBL firmware on the Arduino Uno
    • Self Squaring Gantry

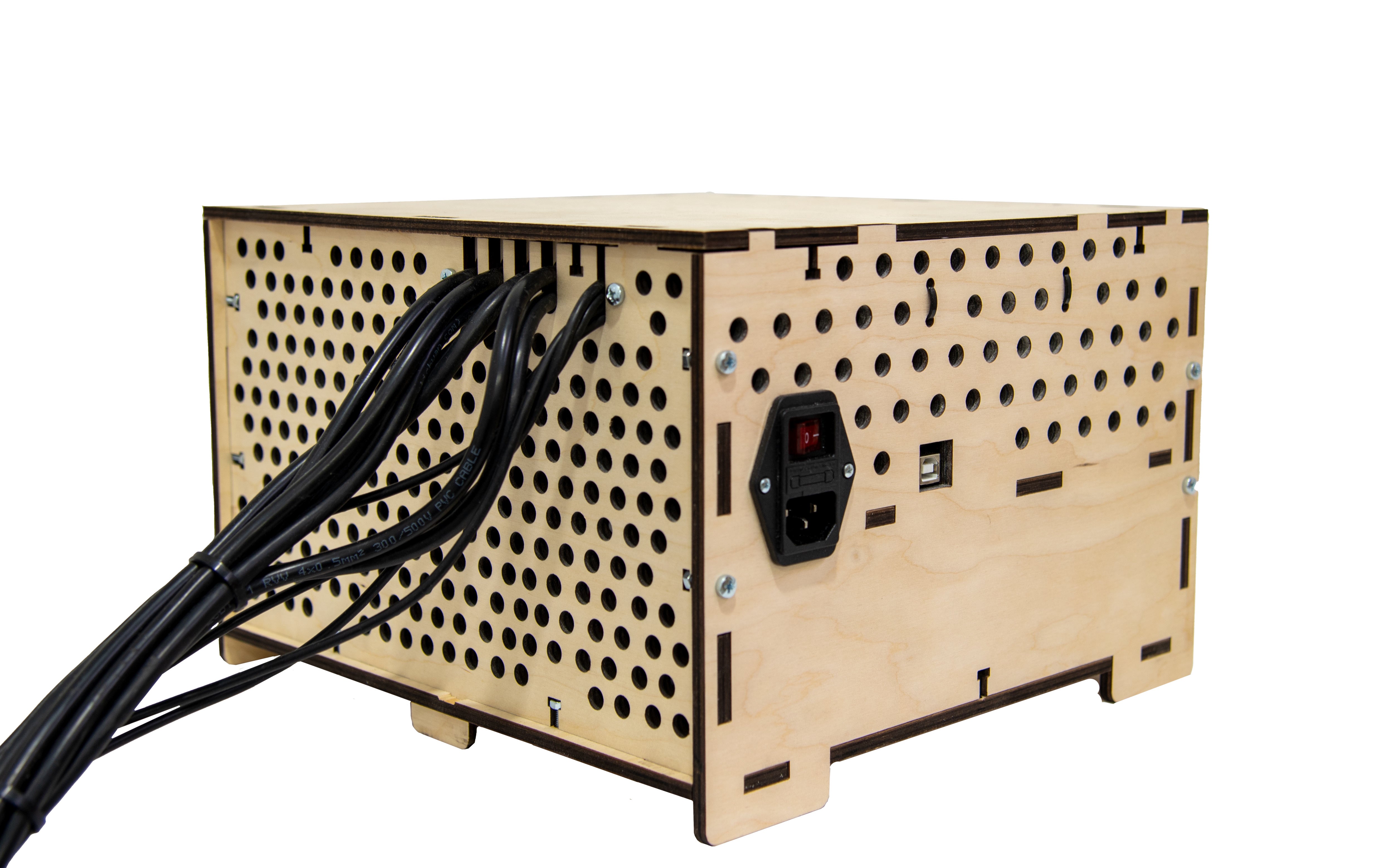

    • Dual 48 VDC Power Supply

    The assembled footprint:

    • Length: 63.1" (1602 mm)
    • Width: 69.6" (1769 mm)
    • Height: 37" (940 mm)

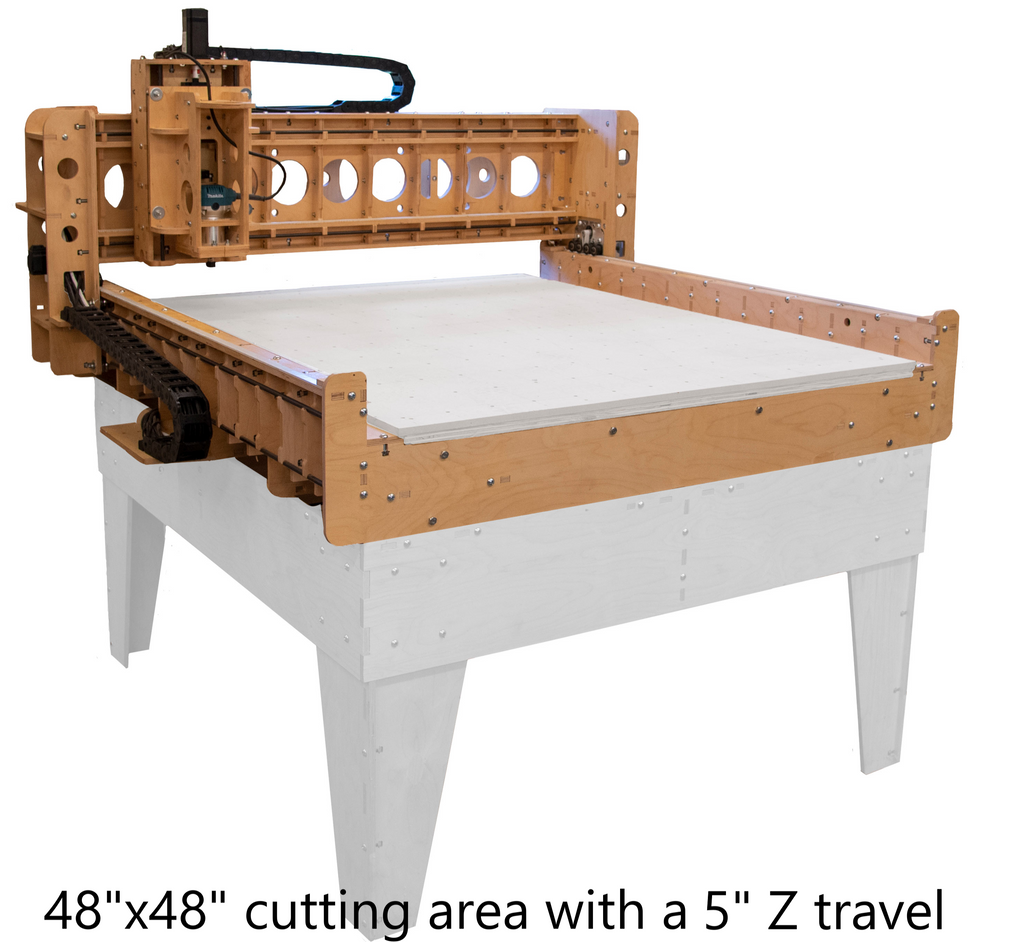

    Cutting Area:

    • X: 48" ( 1219mm)
    • Y: 48" (1219 mm)
    • Z: 5" (127 mm)
    • Gantry Clearance: 4.5" (114 mm)

    Specifications

    Material 12 mm 9 ply Baltic Birch
    Router Spindle Makita RT0701C
    Spindle RPMs 10K to 30k
    Processor Firmware GRBL v. 1.1
    Controller Uno Controller
    Recommended Gcode Sender UGS Platform
    X,Y Axis T5 x 15 mm Bell-Everman Servo Drive
    Z Axis SFU 1204 Ball Screw
    Rail System Supported Rails, 3/8” Stress Proof Steel
    Power Supply AC Dual 48 VDC  7 Amps
    Input 110 VAC
    Drive Motors NEMA 23 Servo  Closed Loop Quadrature Encoder
    Holding  Torque 3 Nm (425 oz. in.)
    Servo Resolution X and Y axes 0.001” (0.025 mm)
    Servo Resolution Z axis 0.00007” (0.002 mm)
    Repeatability 0.002” to 0.004”
    (0.05 mm to 0.1 mm)
    Wire Management Drag Chain

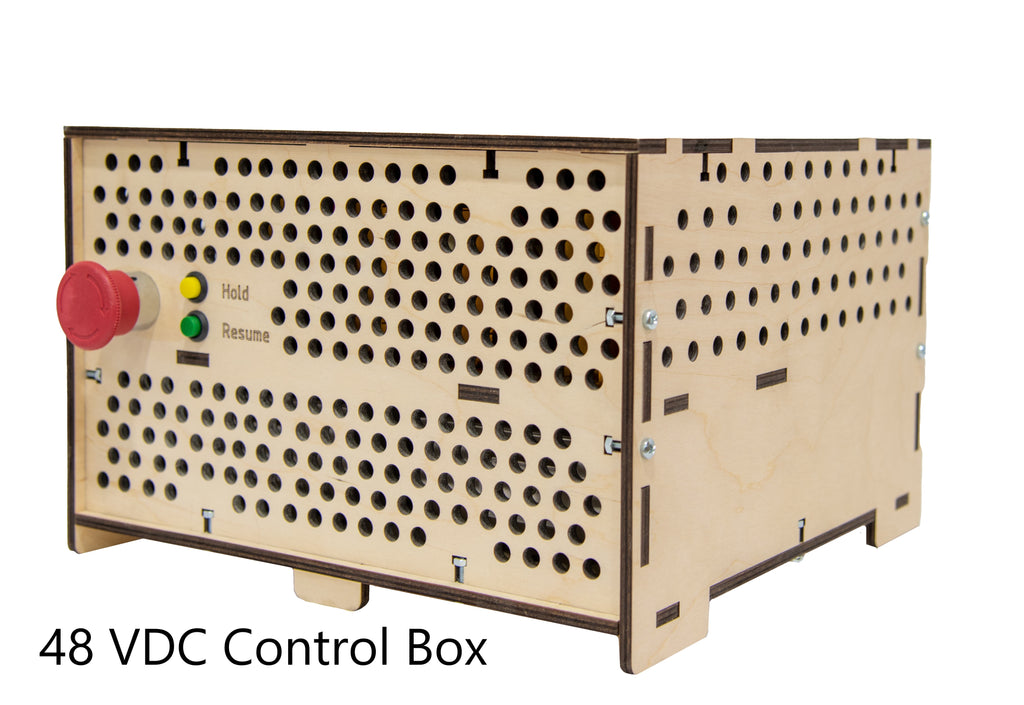

    Hardware Controls Hold, Resume, and Emergency Stop
    Home Switches Hall Effect  with  Self-Squaring Gantry
    Shipping weight  202 lbs (5 boxes)
