Quantum Mini CNC Router Kit



No warranty is expressed or given for any software purchased from BobsCNC. No refunds will be given for any software purchased. If a BobsCNC Router kit is purchased with software and the kit is returned for refund in accordance with the return policy, the retail price of the software will be deducted from the total original purchase price. Any software purchased is the property of the customer.


Free shipping in the lower 48 United States.

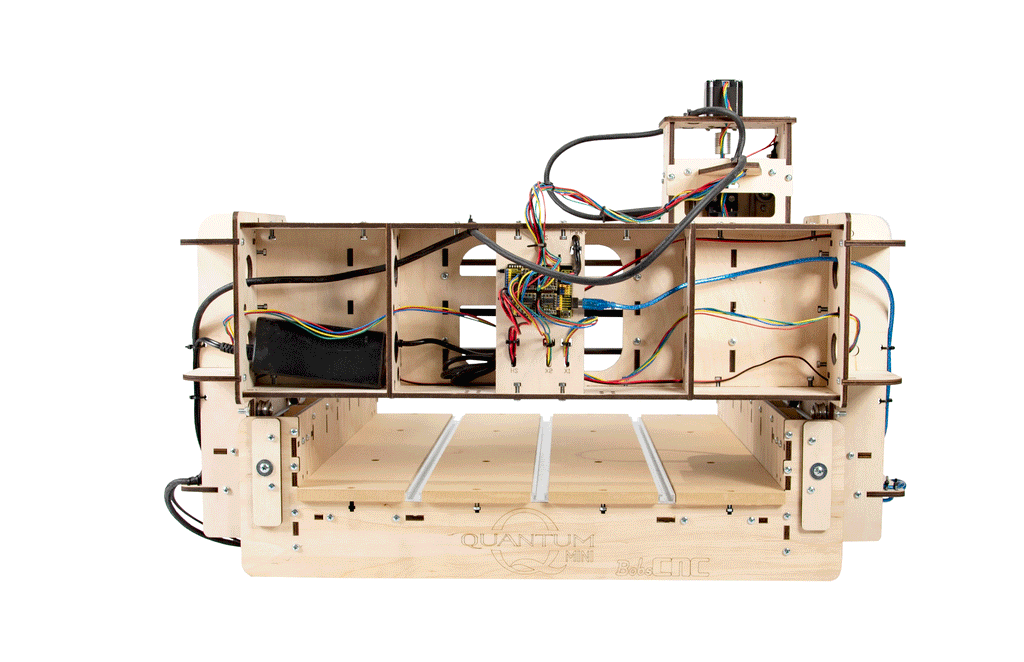

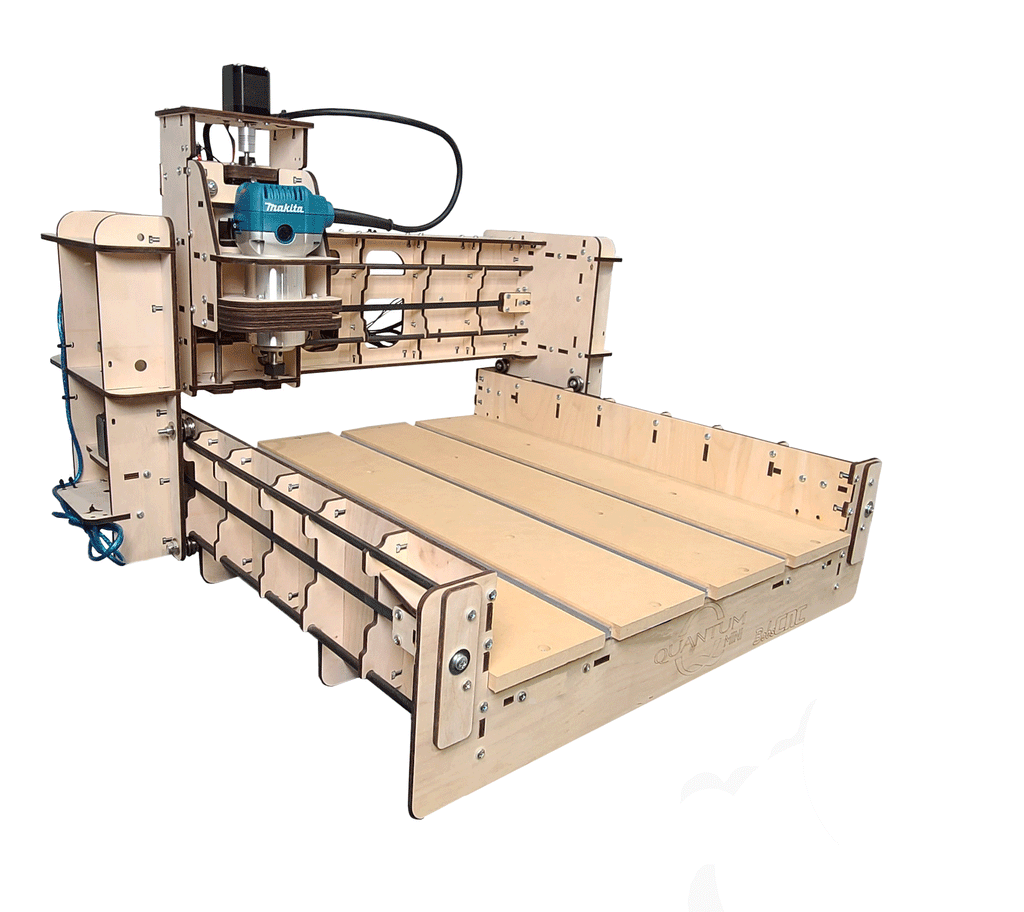

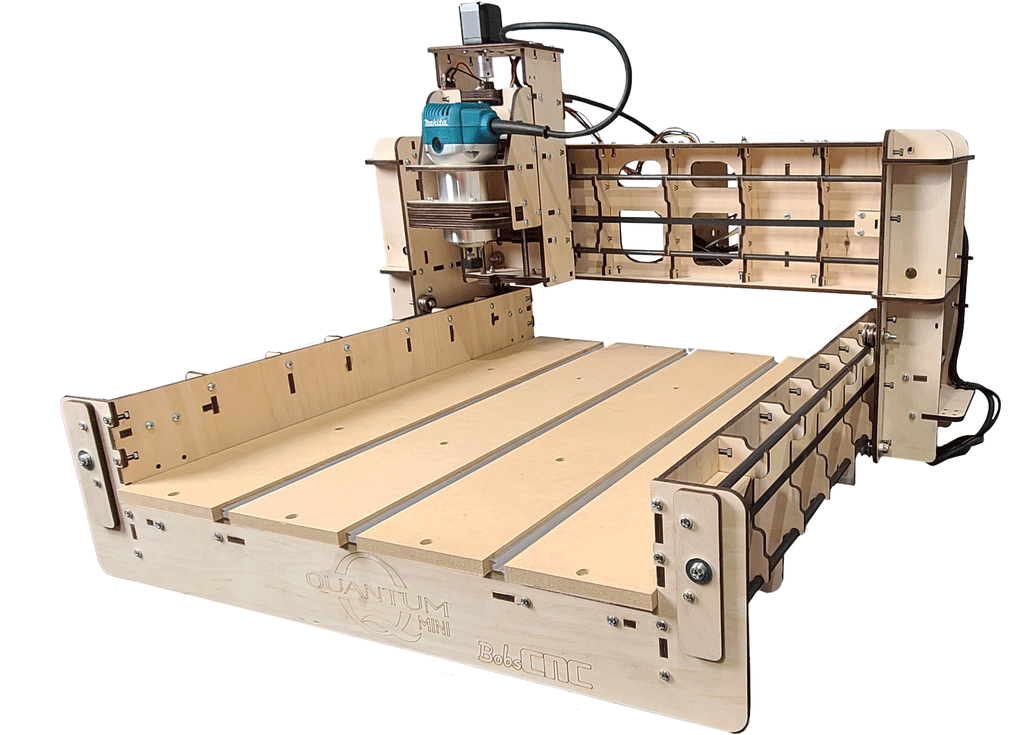

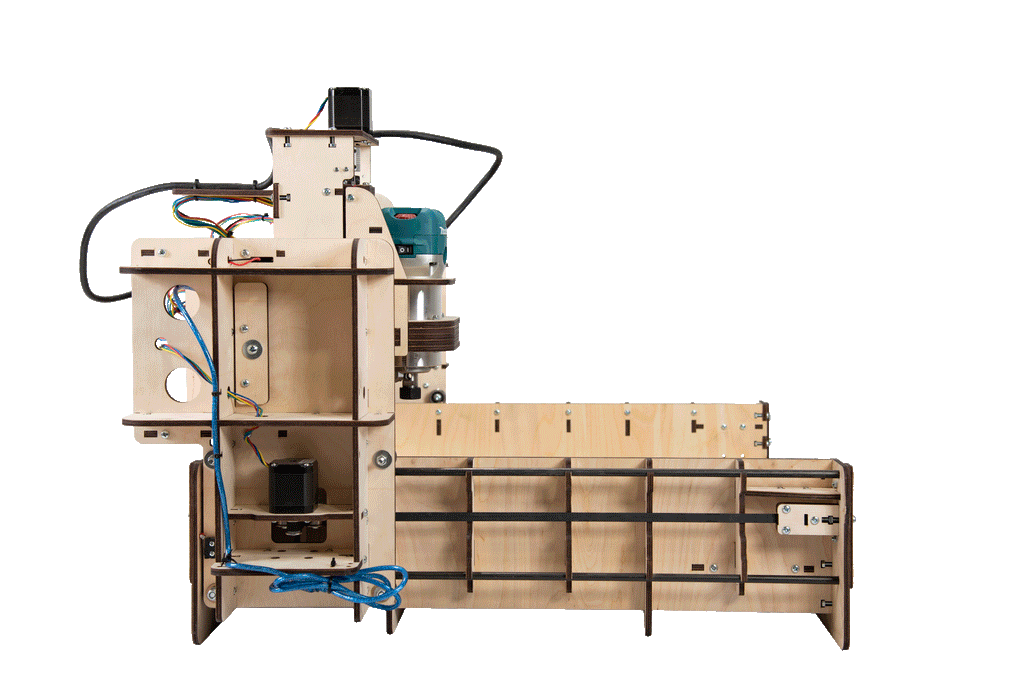

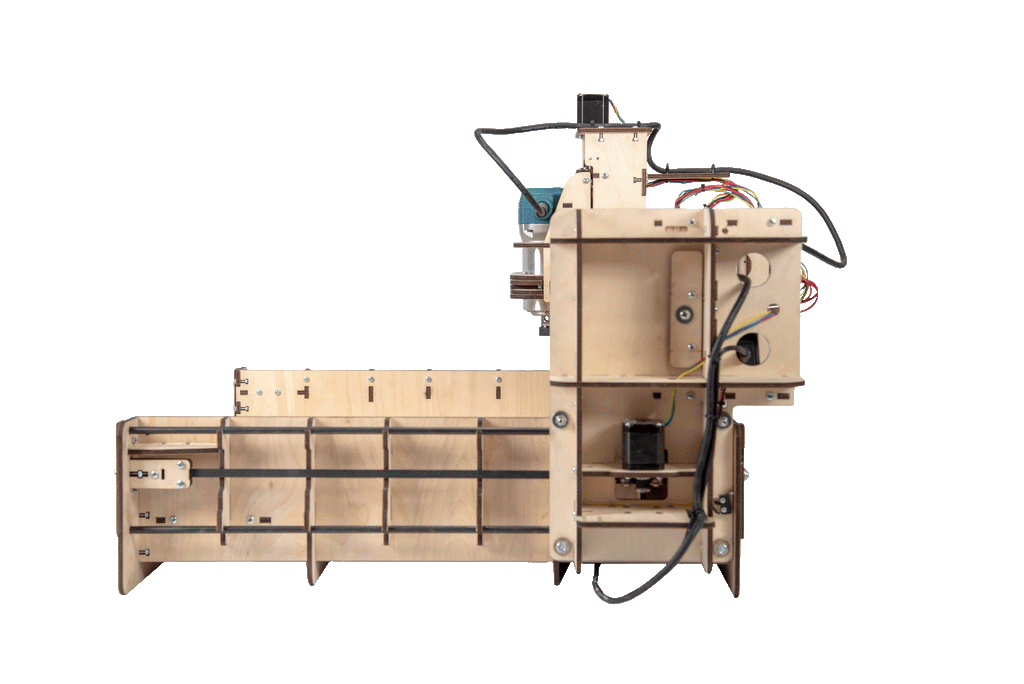

The Quantum Mini CNC Router (16” X 16”) is our popular desktop kit available today. Whether cutting 2.5D projects or 3D carving, they are great machines for making signs, home décor projects, models and so much more.

  • A rigid laser cut frame

  • SG20U supported rail system

  • GT2 belt drive on X and Y-axis

  • Tr8 Acme Rod mounted with an ACME Nut on the Z-axis

  • NEMA 17 Stepper Motors

  • Home switches on all axes

  • Self-Squaring Gantry

  • 1/2” MDF with Aluminum T- Slot Spoilboard

  • Makita RT0701C Variable Speed Router included

  • Designed to use GRBL1.1 firmware on the Arduino Uno.

  • Repeatability of 0.002” to 0.004”


The assembled footprint:

  • Length: 32"

  • Width: 25"

  • Height: 22"

  • Weight: 38 lbs

Cutting Area:

  • X: 16" (407 mm)

  • Y: 16" ( 407 mm)

  • Z: 3.8" (98 mm)
