Digital Read Out (DRO) for my Bridgeport Series 1 CNC

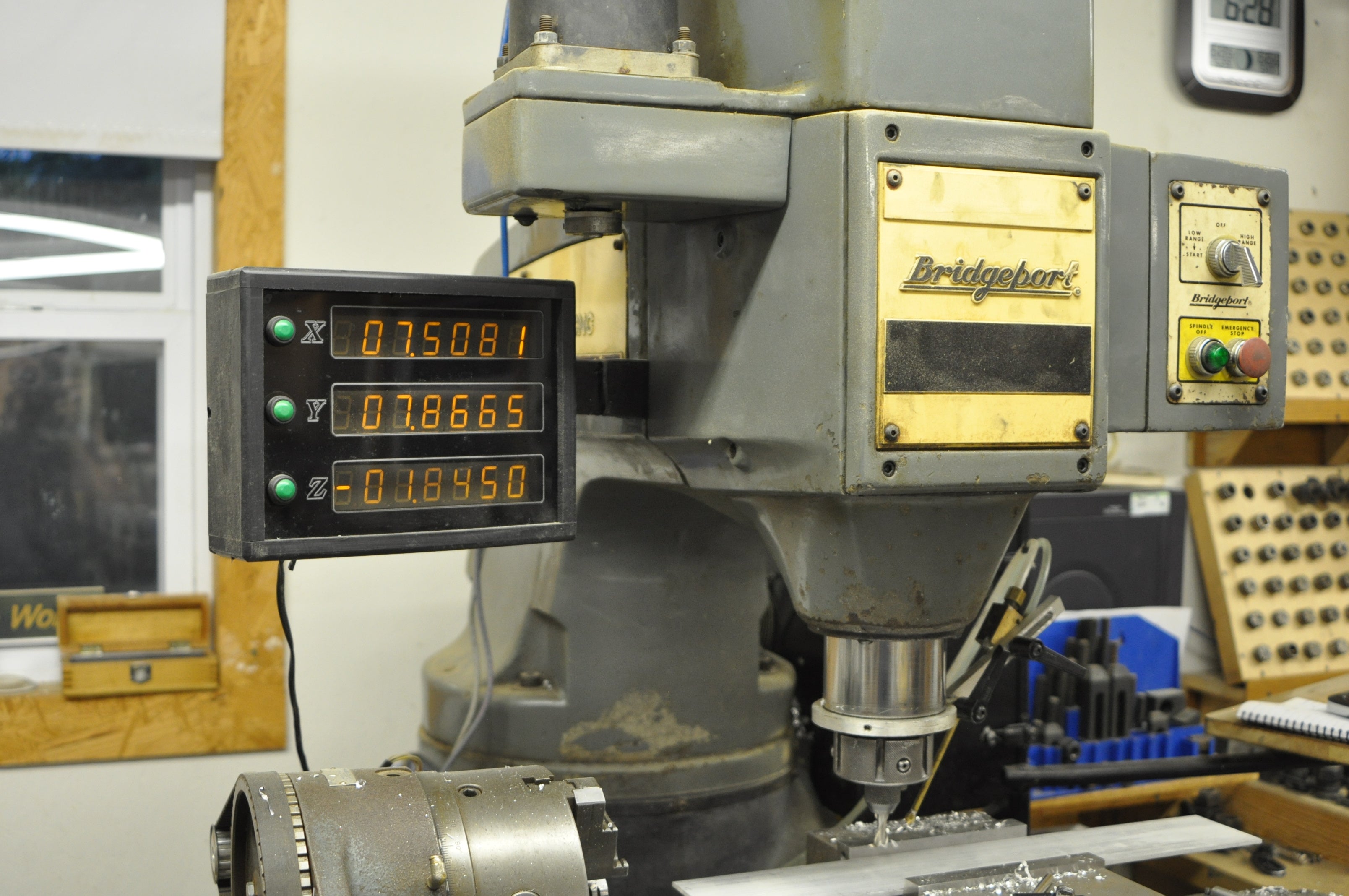

Product image 1Digital Read Out (DRO) Bridgeport Series 1 CNC

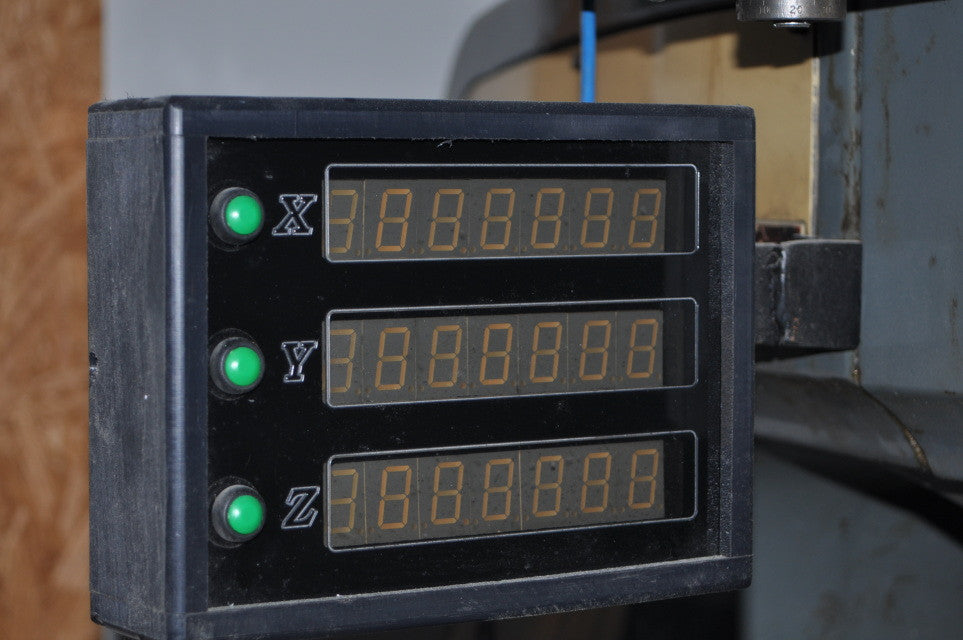

Product image 2DRO for bridgeport CNC

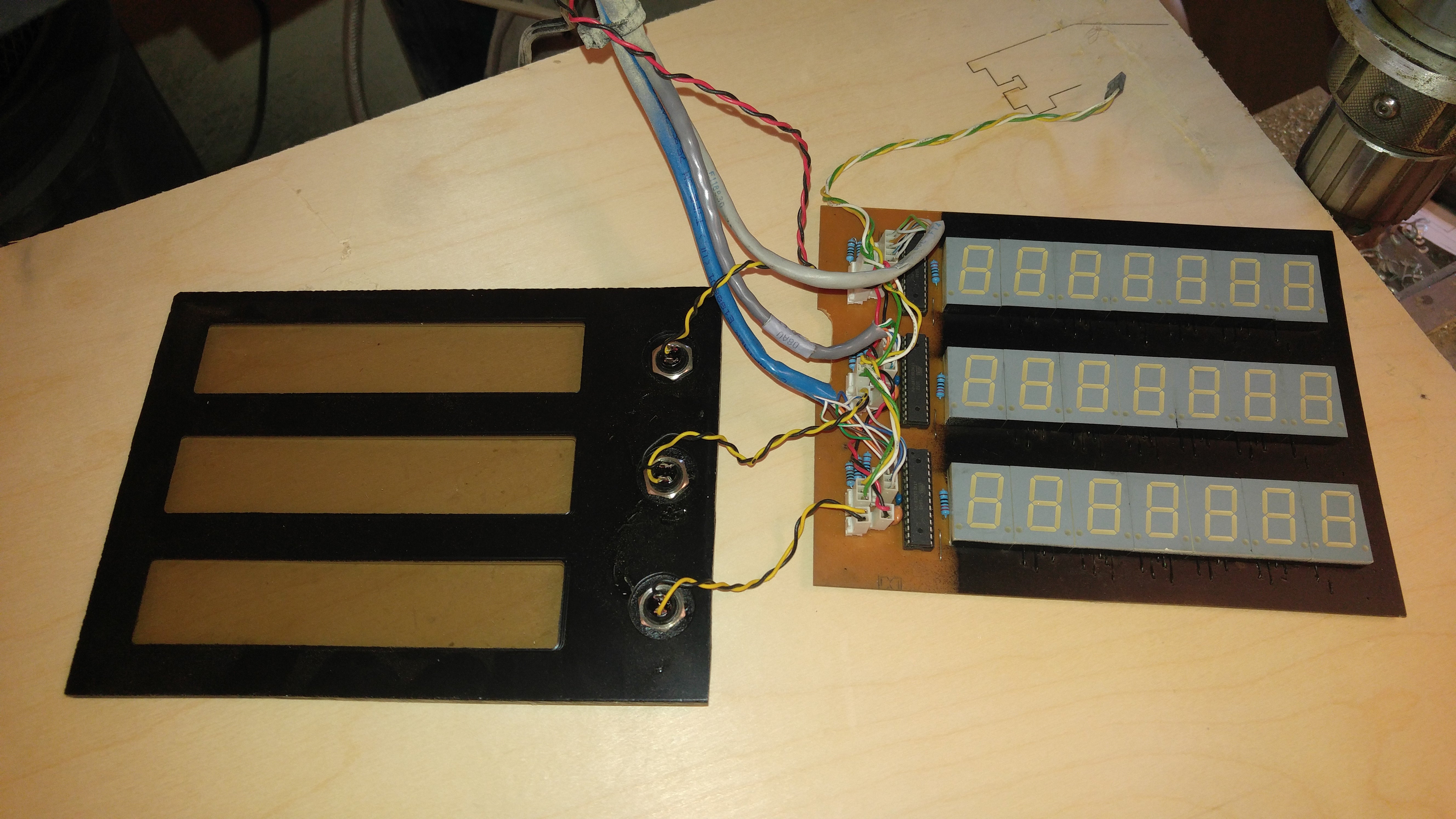

Product image 3Building DRO for CNC

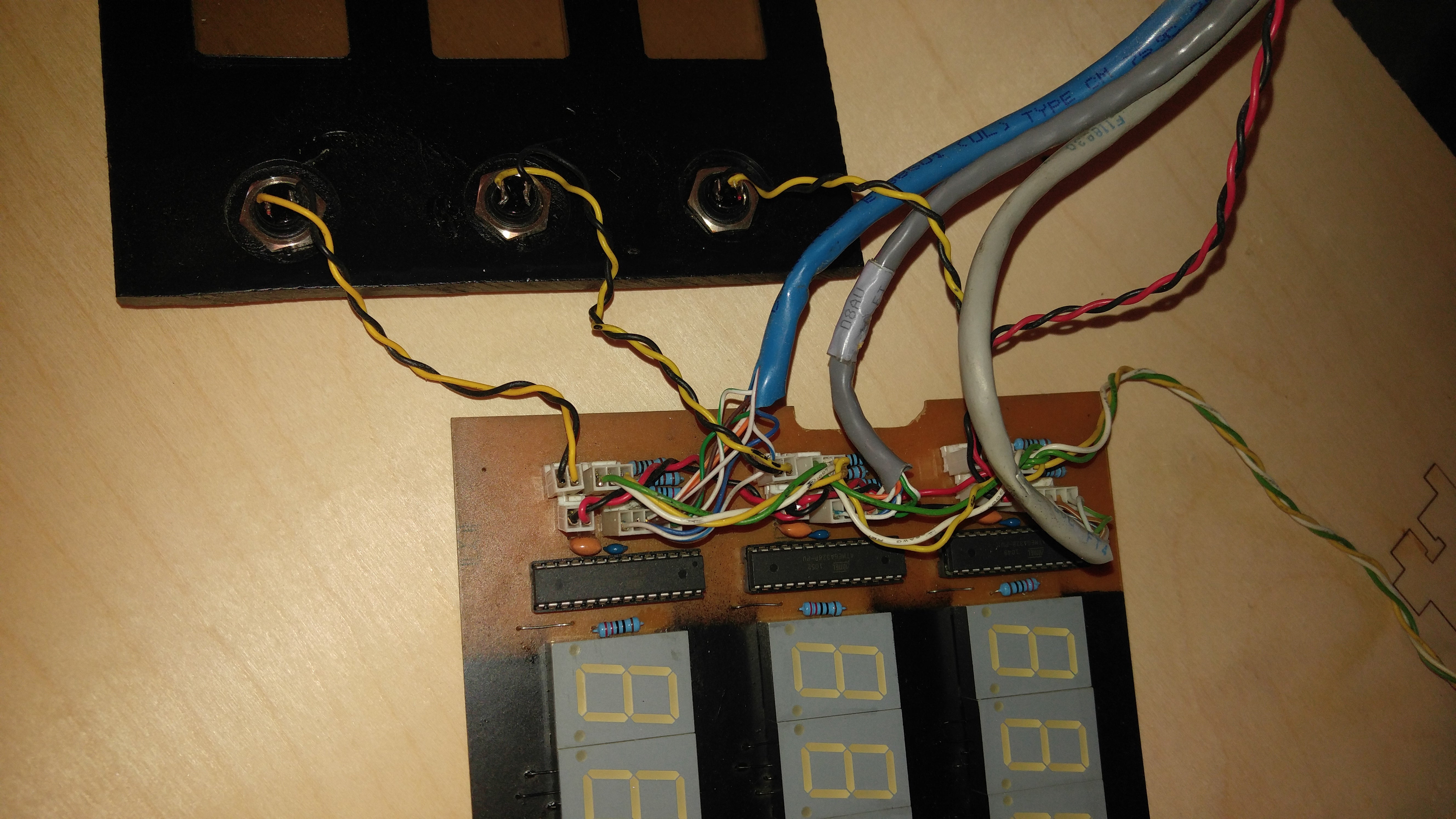

Product image 4wire routing for DRO CNC

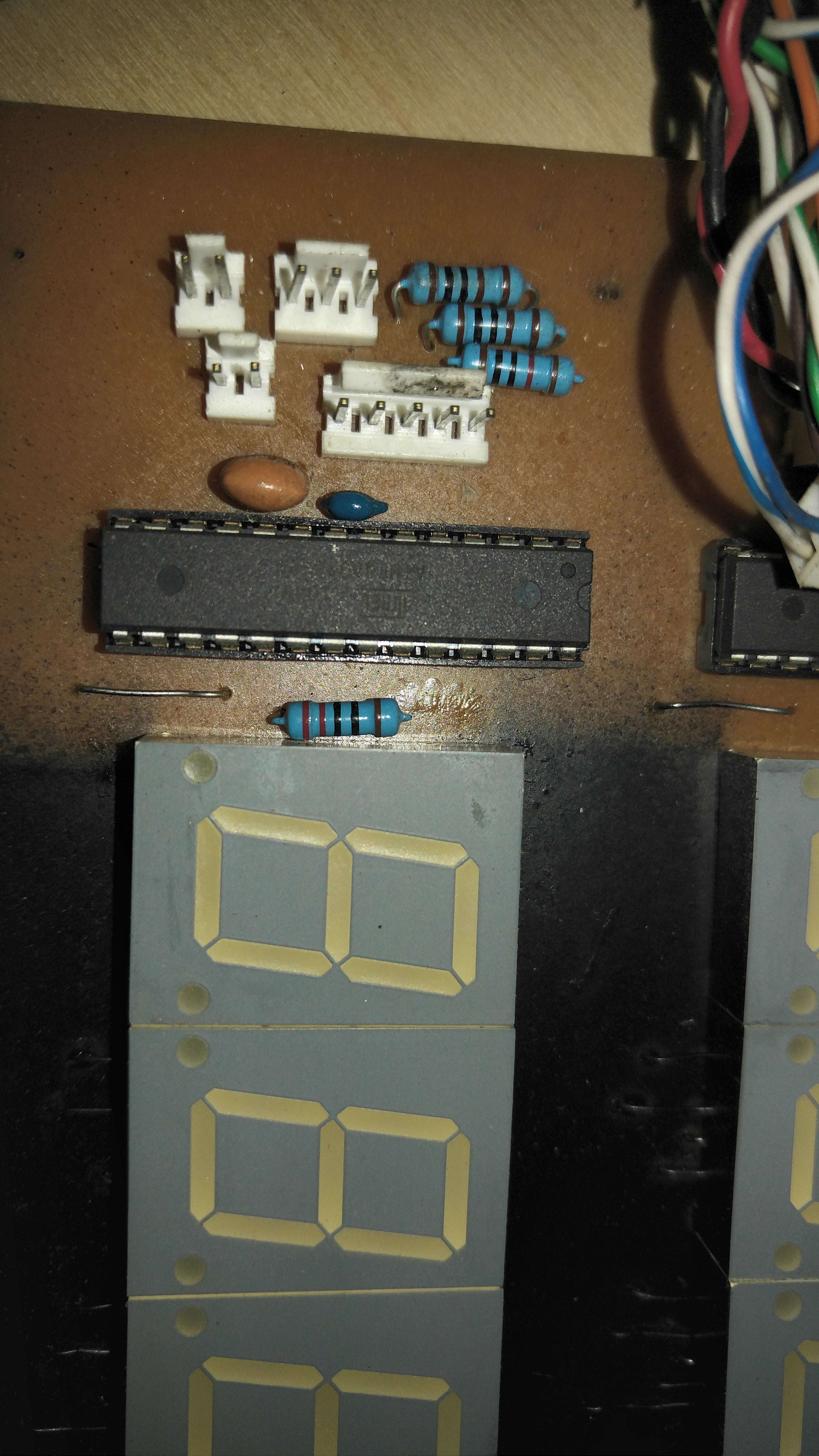

Product image 5Arduino DRO

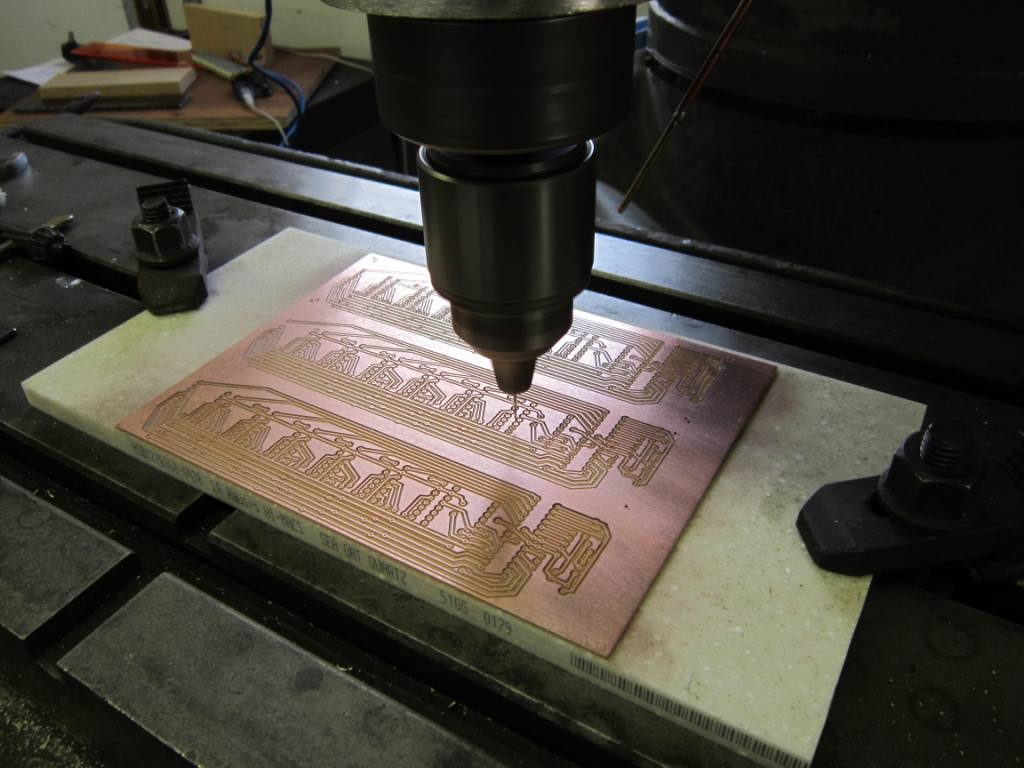

Product image 6CNC PCB board to make DRO

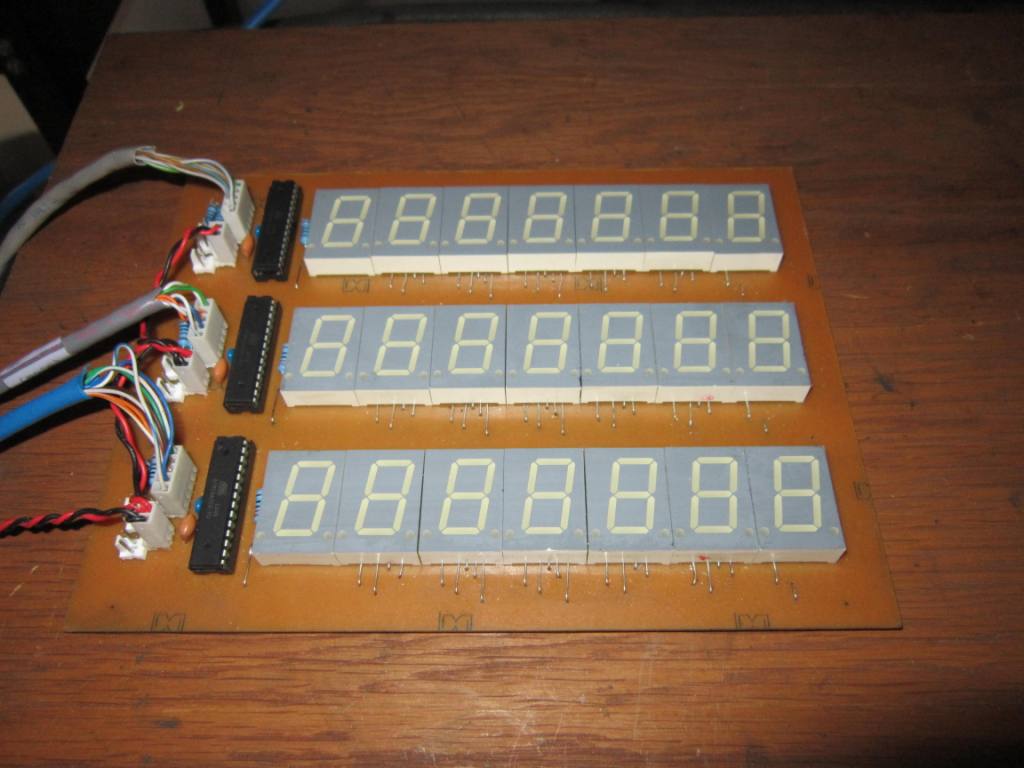

Product image 7DRO display for CNC

Regular price $0.00

These files contain the schematic and g-code files to build a DRO using an ATmega328 for each axis. The code file can be uploaded into the Arduino IDE and downloaded to the ATmega328. The input is a 2 channel quadrature encoder. The green buttons are to reset to zero.
